Brand Name : XUANHUA
Model Number : GZ-PG
Certification : CE
Place of Origin : CHINA
MOQ : 1
Payment Terms : L/C, T/T, Western Union
Supply Ability : 200 sets/month
Delivery Time : 5-20 working days after received payment
Packaging Details : Wooden Packing or according to your requirements
Price : Negotiable
Machine Name : Pneumatic Filling Machine
Air pressure : 0.4-0.9MPA
Working method : Pneumatic
Filling speed : 1-30 bottles/min for single head and 20-60 bottles/min for double head
Filling materials : paste, liquid
Filling accuracy : 1%
Full Pneumatic Filling Machine Pneumatic Paste Pure Water Liquid Filling Machine
The pneumatic paste filling machine is a full pneumatic control model. When filling facial cream, ink, ointment, cream and other pastes, all use compressed air as control, and adopt hard positioning, and the filling amount is adjusted. The handle and filling speed can be adjusted arbitrarily, and the filling head adopts anti-drip, anti-drawing and lifting filling devices. This series of filling machines are divided into single-head, double-head and explosion-proof models. The filling accuracy is high, the model is small and the operation is simple.
The main purpose
The pure pneumatic paste filling machine is ideal for filling products with certain viscosity liquid, semi-fluid, high viscosity fluid, paste and sauce-like particles, especially suitable for environments with explosion-proof requirements. It is highly safe and widely used in medicine, daily chemicals, food, pesticides and special industries.
The piston in the discharge cylinder of the pneumatic paste filling machine initially stays at the upper end position in the discharge cylinder, and is pushed when filling the paste of facial cleanser, lipstick, ink, cream, sunscreen, cosmetics, etc. After the air stroke switch, the pneumatic reversing valve is reversed, and the compressed air enters the upper end of the cylinder, so that the piston in the discharge cylinder moves downward. At this time, the discharge valve opens to fill the paste. The discharge piston moves downward, and the positioning plate on the discharge rod moves downward. When the quantitative disk touches the lower air stroke switch (controlled by the filling adjustment handle), the pneumatic reversing valve is reversed and compressed. Air enters the lower end of the cylinder, moving the piston up (up to the initial state), while the feed valve opens and the discharge valve closes, at which point one duty cycle ends. The filling volume of the pneumatic paste filling machine can be adjusted by the filling amount adjustment handle, the counterclockwise adjustment is to increase the filling amount, and the clockwise adjustment is to reduce the filling amount.
Air pressure: 0.4-0.9MPA
Working method: pneumatic
Filling speed: 1-30 bottles/min for single head and 20-60 bottles/min for double head
Filling materials: paste, liquid
Filling range: 5-100ml, 10-270ml, 20-450ml, 100-950ml, 550-2000ml, 2500-5000ml
Filling accuracy: 1%
Hopper capacity: 30L
Machine material: stainless steel
1. The pure pneumatic paste filling machine is a full pneumatic control model, and the cylinder body, the casing and the hopper of the paste filling machine are all made of stainless steel material.
2. The paste filling machine adopts pneumatic control and adopts hard positioning, so the filling precision is high, and the precision can be controlled within 0.5 (based on the large filling amount)
3. When filling facial cleanser, shampoo, cosmetics, ink, ointment and other pastes, all use compressed air as control, so it is especially suitable for use in environments with explosion-proof requirements, and has high safety.
4. No static electricity, no electricity, no grounding.
5. The pneumatic part of this pure pneumatic paste filling machine adopts the pneumatic components of Germany FESTO and AirTac and SHAKO. The material contact parts are made of 316 stainless steel material to meet GMP requirements.
6. The piston seal is made of PTFE, which is resistant to high temperature, abrasion and long service life.

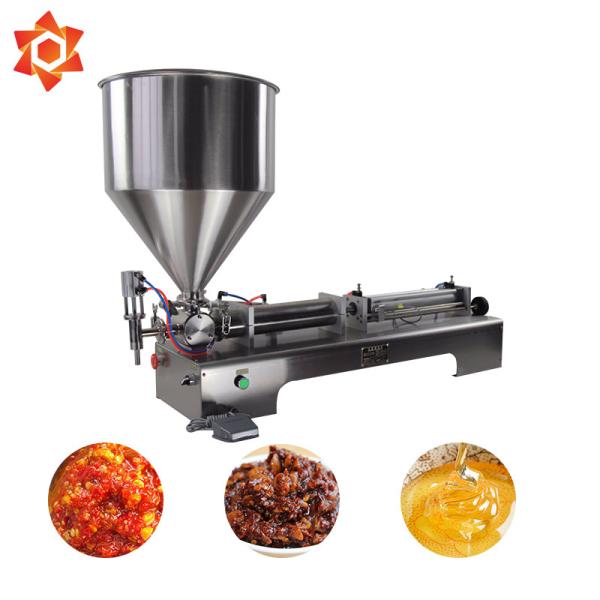

Full Pneumatic Semi Automatic Liquid Filling Machine Air Pressure 0.4-0.9MPA Images
