10-100ml Semi Automatic Bottle Filling Machine Single Head Eco - Friendly

Henan Xuanhua Imp. & Exp. Trading Co., Ltd.

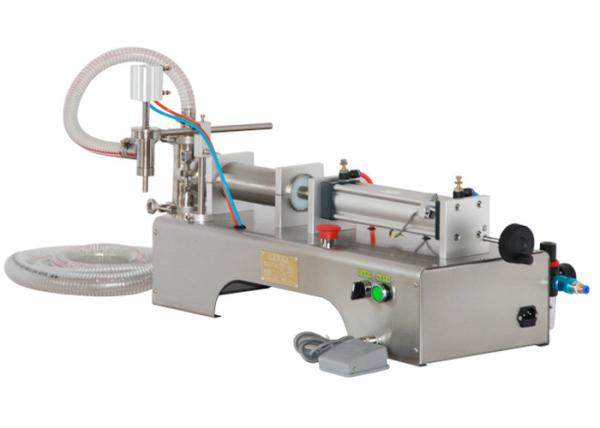

10-100ml Semi Automatic Bottle Filling Machine Single Head Eco - Friendly

Brand Name : XUANHUA

Model Number : GZ-DY-100

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200Sets/Month

Delivery Time : 5-10 working days after received payment

Packaging Details : Wooden cases or according to your requirements

Voltage : AC 220/110V 50/60Hz

Power : 20W

Air Pressure : 0.4-0.6Mpa

Filling Speed : 5-25Bottles/min

Filling Accuracy : ≤±1%

Optional Model : 10-100ml

Contact Now

10-100ml Single Head Semi Automatic Liquid Water Bottle Filler Filling Machine

Product description

This series filling machine is designed accord to the advantage technical.It with simple structure,high accurancy and easy to operation.Widely used in pharmaceutical industry, cosmetic industry, food industry, pesticide filling and special industries. It is the best equipment to fill high viscosity liquid and paste.Accord to GMP,the parts which connect with material are all made of stainless steel.Machine with filling volume adjustable handle,filling speed also can be changed as you need.Filling nozzle designed with non drip function.This series machine have single nozzle model,double nozzles model,explosion proof model and so on.

Technical Parameters

Model GZ-DG GZ-SG GZ-DY GZ-SY
Voltage AC 220/110V 50/60Hz
Power 20W 50W 20W 50W
Air Pressure 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa
Filling Speed 5-25Bottles/min 10-50Bottles/min 5-25Bottles/min 10-50Bottles/min
Filling Accuracy ≤±1% ≤±1% ≤±1% ≤±1%
Optional Model 5-50 , 10-100 , 10-300 , 50-500 , 100-1000 , 500-2500 , 1000-5000ml

What can we do for you?

1. We can make a suitable plan according to your production requirements

2. We can customize the motor or other accessories according to your local requirements

3. We can help you customized your own LOGO
